512x512mm P4 indoor full Color led video wall led large-screen display sign background synchronization system

TOPcx1000012
◆Product size can be customized◆
Brightness is adjustable,Display speed is adjustable
Letter font and letter size are adjustable
Housing material is Aluminium alloy and housing color is black
Default function is text letter, time and date;temperature
Price:
    Please select the information you wantX
  • size:
    512x512mm
Quantity:
-
+
(9999 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Shipping
  • payment
  • Seller Guarantees
  • Size Chart
  • Review
  • Reviews
【Package including】
*LED sign 1PCS (size512x512mm /20x20 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual

【Feature & Function】
                                      Model :     CX-PH4 RGB07A


LED Module model
  color 1R1G1B
LED Type SMD2121
Module Resolution W 64 x H 32
Module Size (mm) W 256 x H 128
Driving Method 1/16 scan
   LED  display parameter
voltage 220V or 110V  ± 10%

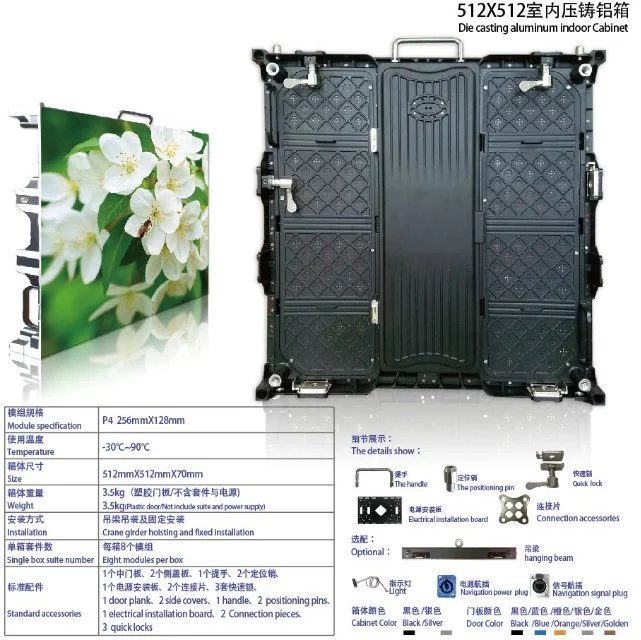

Material indoor Die-cast aluminum waterproof  ( IP 20 )
Cabinet Size (mm) W 512x H 512 MM (20X20 Inch)
Cabinet Resolution (pixel) W 128 x H 128
power Consumption Max (w/set) 200 Watt
Brightness ( CD/㎡) ≥1500
Net Weight (kg) 11 kg
Viewing Angle 120° / 70°
Theoretic LED Working Life More than 100000 hours
control method network port control (USB, wifi, optional)
display function Date,Text, picture, logo ,  video.

Here at CXGuangDian, our goal is to provide our customers with the best LED solutions for their needs, with many years of LED Production experiences; from manufacturing single LED diode light sources, LED name tag, desktop/wall LED Signs, to full building size full color LED displays, we careful craft each and every single units we build to ensure the best quality products that comes out of our work.

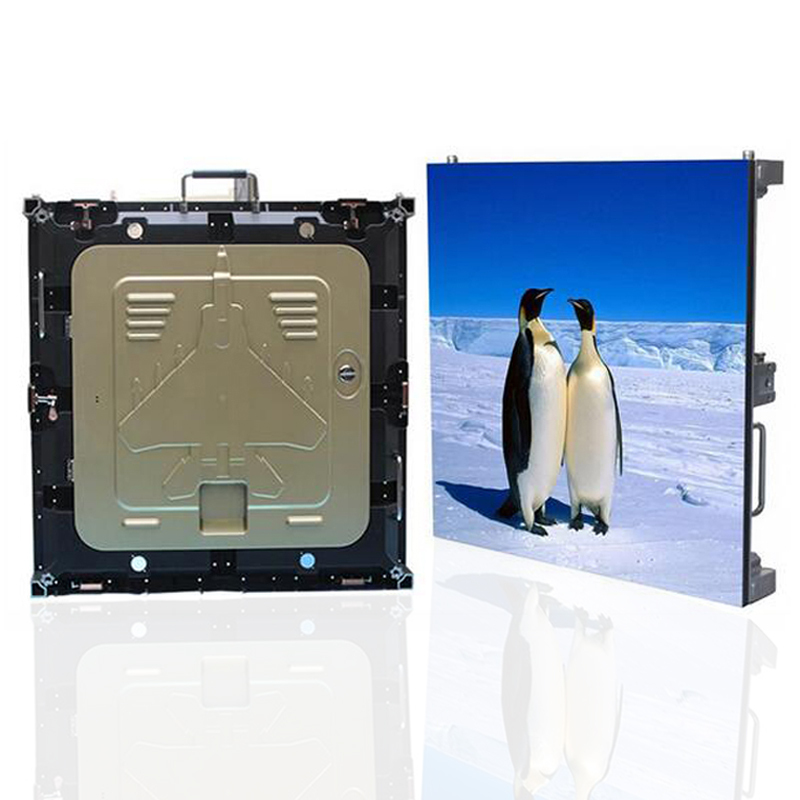

 Indoor P4 full color led display


 CX Indoor LED Video Wall is only very
thin which makes it ultra-lightweight
and space saving. Can be installed
atany area without requiring muchspace.
The light weight of 11kg/full color LED
display is easy to carry, transport and
install - saving good amount of
moneyon yourlabor costs.Used for stagebackground,
media advertising perfect solution.





Indoor full color application

CX P4 LED video wall in the big arena,
public buildings, bars, chain stores, hotels,
restaurants and other indoor places are
very applicable. Its thin and ultra-light
modules make it easy to install in any place,
the perfect led display solution business
CX company.








Led panel integrated design
quick installation


Cx led sign with ultra-light module to make it
easy to carry. Transport and installation.
Customers do not need any special tools
or skills to install it. Led display everything
is built-in, you can use a simple screwdriver
in a few minutes to complete the installation.
Perfect led display wall solution.

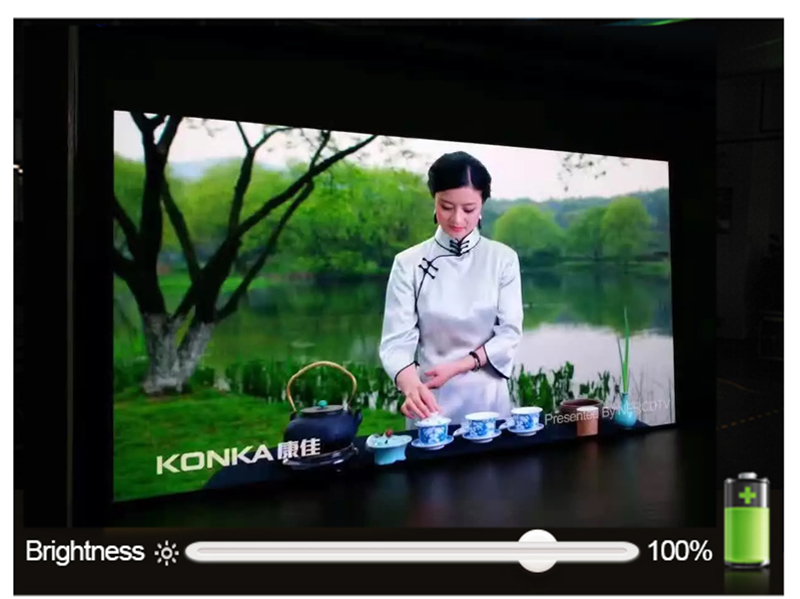

 High brightness adjustment
high quality effect


Cx indoor LED video wall high brightness
and high-definition effects to ensure
high-quality pictures.

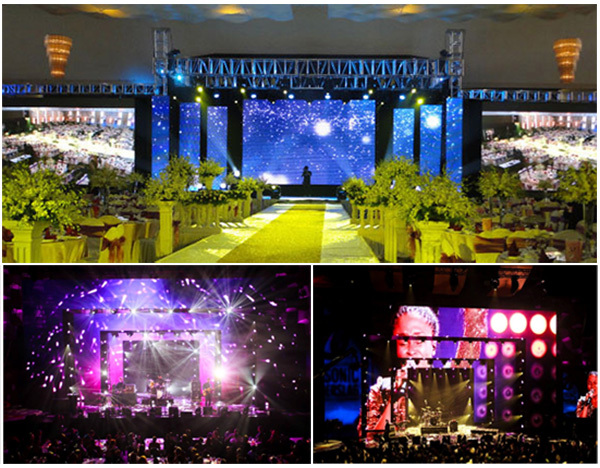

Making it very suitable for large stage background,
five-star hotel, commercial advertising,
station terminals, indoor stadium
and other places.







Led display connection type

The panel has two connection
types - horizontal and vertical
connections. Therefore, it can
be installed in two ways. Unique
cabinet design, to ensure fast
installation, easy maintenance.
cx led display screen makes it
ideal for stage background, bar
entertainment ceremony and
wedding.




















Here at CXGuangDian, our goal is to provide our customers with the best LED solutions for their needs, with many years of LED Production experiences; from manufacturing single LED diode light sources, LED name tag, desktop/wall LED Signs, to full building size full color LED displays, we careful craft each and every single units we build to ensure the best quality products that comes out of our work.
